Lightweight and High-strength Refrigerated Truck Body CKD Kits

CKD is the abbreviation of Completely Knocked Down, which means full bulk. CKD product refers to a way to decompose the whole vehicle into several parts, then pack these parts into loose parts, transport them to the destination and then assemble them. This approach can reduce transportation costs and increase production efficiency and flexibility. Hangzhou HolyCore is a professional CKD refrigerator truck body manufacturer, we can provide various CKD kits to customers  with high-quality customized services.

• PU Insulation Panel

PU Insulation Panel has the following advantages: 1. Low thermal conductivity, good insulation effect; 2. Light weight, high strength, pressure resistance, wear resistance, corrosion resistance; 3. Convenient construction, can be carried out according to needs (cutting, pasting, splicing); 4. Environmentally friendly, does not contain harmful substances such as CFC and HCFC.

•    XPS Insulation Panel

XPS Insulation Panel has the following advantages: 1. Low thermal conductivity and good insulation effect; 2. Light weight, high strength, pressure resistance, wear resistance and corrosion resistance; 3. Convenient construction, can be carried out according to needs (cutting, pasting, splicing); 4. Environmental protection, free of harmful substances such as CFC and HCFC.

The difference between XPS insulation panel and PU insulation panel lies in the different materials. XPS insulation panel is made of polystyrene foam, while PU insulation panel is made of polyurethane foam. Both have very low thermal conductivity and are good at insulating.

 ☆ Nice Appearance

 ☆ Good Thermal Insulation

 ☆ Easy to Assemble

 ☆ High Degree of Customization

 ☆ Perfect After-sales Service

         Roof  80mm FRP XPS Foam Panel (FRP 1.6mm)

         Left & Right Side Panels  80mm FRP XPS Foam Panel (FRP 1.6mm)

         Front Wall   80mm FRP XPS Foam Panel (FRP 1.6mm)

         Door Panel  80mm FRP XPS Foam Panel (FRP 1.6mm)

         Floor (Bottom Part)   80mm FRP XPS Foam Panel (FRP 1.6mm)

        Door Type  Double Door

        Lock Material  Stainless steel

        Hinge Material Stainless Steel

        Door Frame Material  Mirror Stainless Steel / Brushed Stainless Steel

         Door Type  Single Door/Double Door

         Number of Doors   Left Side Only / Right Side Only / Both Sides / Neither Side

          Door Frame Material  Stainless Steel

          Door Lock & Lock Lever  Built-in (affects thermal insulation) / External (recommended)

          Door Lock, Lock Lever & Hinge Material   Stainless Steel

Iron sub frame are strong, but heavier, and tend to rust      when used in wet environments. If the truck body is long  or requires high strength, we recommend that you choose an iron sub frame.

The strength of the aluminum sub frame is not as high as that of iron, but it is much lighter in weight and resistant to corrosion. If you want a lighter truck body, we recommend an aluminum sub frame.

Connection Method  Bolt Connection

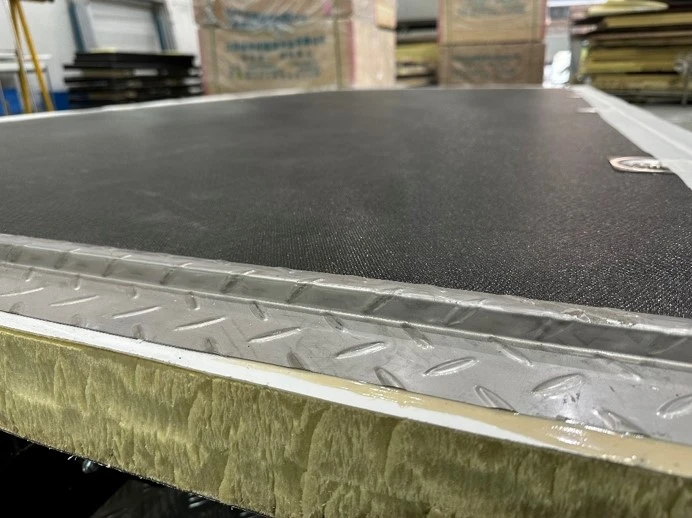

• Insulation Panel

• + Aluminum Guide Rail

• Insulation Panel

• + Patterned Aluminum Panel

• Insulation Panel

• + Honeycomb Anti-skid Panel

• Insulation Panel

• + Non-slip FRP Panel

HolyCore is a wholly owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF 16949 certification.

At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials, drive the future, we look forward to working with you to build a green world.
