Fiberglass Wall Panel

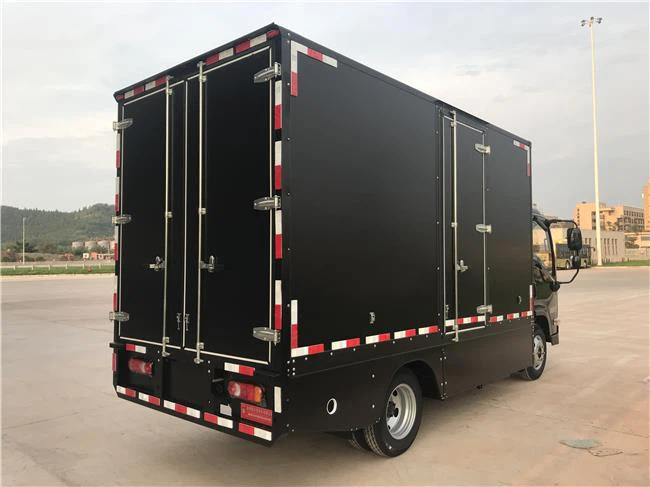

Fiberglass Wall Panel for Truck Bodies

The Fiberglass wall panel for truck bodies is made of FRP/GRP skin and PP honeycomb core material, the UV resistant fiberglass reinforced skin gives smooth finish while the honeycomb core material could absorb lots of impact force. The Fiberglass wall panel could be easily assembled with...
Send InquiryChat Now

The Fiberglass wall panel for truck bodies is made of FRP/GRP skin and PP honeycomb core material, the UV resistant fiberglass reinforced skin gives smooth finish while the honeycomb core material could absorb lots of impact force.

The Fiberglass wall panel could be easily assembled with profiles, so the productivity will be improved.  Compared with traditional steel or plywood wall panel,it is much lighter that the overall weight of the truck body will be largely reduced , therefore the truck with our panels would simply save more fuels or increase the payload.


Dimensions and Colors:

1. Thicknesses:15mm, 20mm and 25mm, or any other customized thickness

2. Dimensions:Up to 16.5m long and 3m wide

3. Colors:RAL system or as customer requested



Features:

1. High strength but HALF the weight of conventional FRP/GRP plywood sandwich panel

2.Outstanding and smooth appearance, aesthetically pleasing and ideal for sign writing

3. Remarkably easy to maintain and keep clean, quick to assemble

4. Will remain "white" year after year

5. UV and corrosion resistant

6. Long service life



Application References:

1. Dry freight truck bodies

2. Prefabricated houses

3.  Exterior walls of commercial buildings

4. Indoor swimming pool buildings

5. Toilets, shower compartments etc.

No.

Item

Data

1

Static strength Mpa≥

18

2

Elastic modulus Mpa≥

1500

3

Barcol hardness ≥

40

4

Impact strength KJ/m²

50

5

Edgewise compressive strength Mpa≥

10

6

Flatwise tension strength Kpa≥

450

7

Flatwise compression strength Mpa≥

1.5
