FRP XPS FOAM PANEL

FRP XPS FOAM PANEL

XPS foam cored FRP composite panels are made of prefabricated fiberglass reinforced plastic sheets as inner and outer surfaces, PU foam ad core and high-strength adhesive bonding together under high vacuum pressure. The gelcoat on surfaces are FDA approved, friendly to food. Advantage: light...
Send Inquiry
Chat Now
Description
Technical Parameters

XPS foam cored FRP composite panels are made of prefabricated fiberglass reinforced plastic sheets as inner and outer surfaces, PU foam ad core and high-strength adhesive bonding together under high vacuum pressure. The gelcoat on surfaces are FDA approved, friendly to food.

Advantage: light weight, high impact resistance and strength, corrosion resistance, smooth and glossy surface, UV ad weather resistance, good insulation, easy to repair, long time using. Custom made aluminum extrusions and high-strength adhesive to join body panels giving easy assembly without fasteners visible on external appearance. Bodies can be supplied either fully built or in CKD form.


Thickness: 45mm, 70mm, 85mm, can be customized.

Sizes available: 16.5m long and 3m wide at maximum.


Mechanical Properties

No

Item

Data

1

Thermal conductivity

≦ 0.03 W/w.k

2

Barcol hardness

≧ 35

3

Flat compressive strength

≧ 0..25 MPa

4

Edgewise compressive strength

≧ 2.0 Mpa

5

Tensile strength

≧ 0.7 MPa


No

Thickness of panel (mm)

Weight (kg/m2)

1

45

8.0

2

70

8.8

3

85

9.3

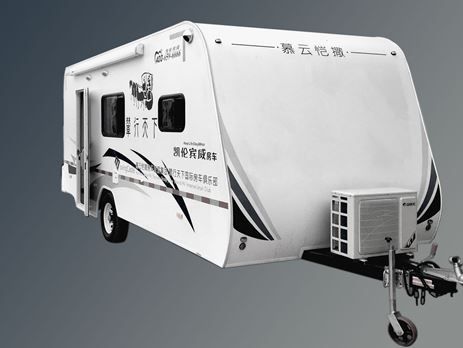

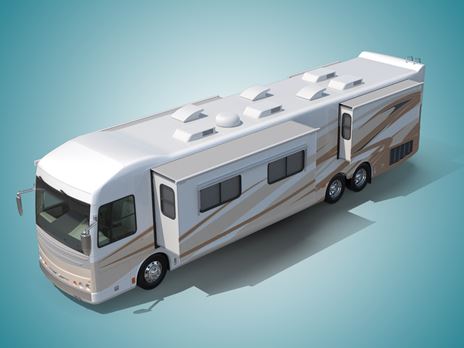

Applications: Caravans, Refrigerated Truck Bodies, Refrigerated Container etc.

FRP XPS FOAM PANELFRP XPS FOAM PANEL

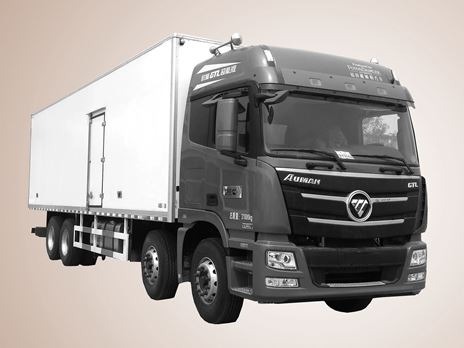

FRP XPS FOAM PANEL FOR TRUCK
