Fiberglass Wall Panel

Fiberglass Wall Panel For Commercial Vehicles

Fiberglass Wall Panel For Commercial Vehicles

Holypan® is a kind of plastic honeycomb structure sandwich panel, good for commercial vehicles.
Send InquiryChat Now

Fiberglass Wall Panel for Commercial Vehicles

Holypan® is a kind of plastic honeycomb structure sandwich panel, good for commercial vehicles.

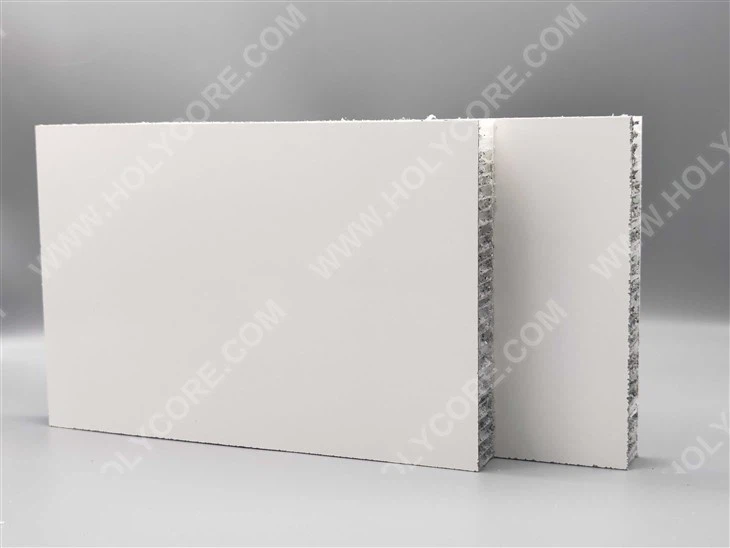

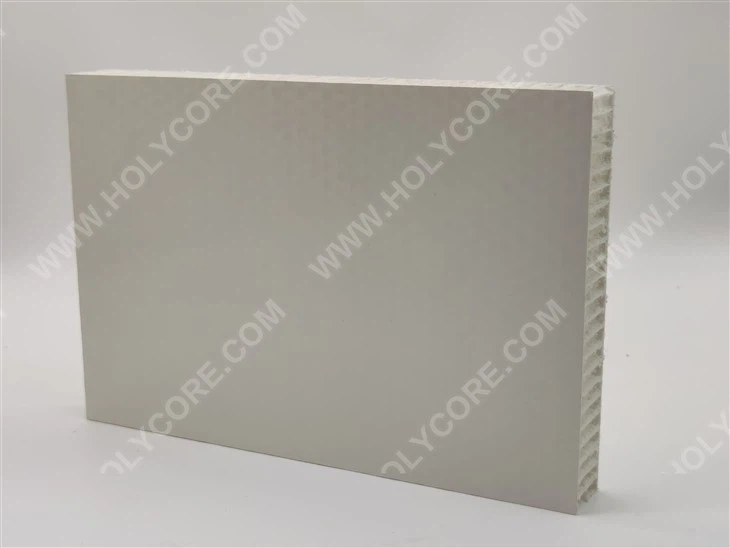

HolyPan® is a kind of innovative sandwich panel, and has widely applications like van body for logistics and express, mobile house, caravan, package, etc. It has unique bionics structure, the core is PP honeycomb, the skin is fiber glass reinforced pp board. This plastic sandwich panel for caravans is light weight with excellent mechanical performance at same time. HolyPan® become more and more popular for caravans all over the world.



Structure:

reinforce woven fabric skin + pp honeycomb core + reinforce woven fabric skin.



Skin:

standard skin: 0.7mm, special skin: 1.0mm, 1.4mm.



Core density:

80kgs/m3(standard core), 100kgs/m3, 120kgs/m3.



Core thickness:

very flexible, from 10mm to 70mm.



Surface:

Painted white one side(standard paint color).

Unpainted both sides

Black color

Some special color paints are available, such as green, orange, red, blue.



Specification:

Max length for export: 11900mm.

Max width for export: 2500mm.

Thickness range: from 12mm to 70mm.



Q:What's the material of your panel?

A:It's pp(polypropylene) with fiberglass.

Q:Is your panel water proof?

Q:What’s the insulation property?

A:Standard HolyPan® can be used for thermal insulation materials, as its thermal conductivity is less than 0.12 W/mk at room temperature

A:Yes,it's totally water proof

Q:What's temperature range your panel could stand?

A:From-40 to +80°

Q:Is your panel easy to join?

A:Yes,very easy,it could be joined by screws,bolts,rivet,glue and plastic welding

Q:What's the advantage  of your panel compared with FRP panel?

A:More lighter,more stronger,no polution,easy to repair.

Q:What's the MOQ?

A: Special thickness around 500㎡. Pls ask our customer service to get more infos.

Q:What's the maximum length?

A:No limitation on the length.

Q:Is it recyclable?

A:Yes.

Q:Is the sample free?

A:Yes.
