Thermoplastic PP Honeycomb Panel

Thermoplastic PP Honeycomb Panel

HolyPan developed and produced by HolyCore is a composite material product, which is a Thermoplastic PP Honeycomb Panel with Glass Fiber Reinforced Skin. HolyPan is composed of a polypropylene (PP) honeycomb core and a fiberglass-reinforced outer skin. Its manufacturing process mainly includes the following steps: First, the PP particles are melted at high temperature and then formed into a honeycomb structure through a special mold. Then, the glass fibers are mixed with special gelling materials, repeatedly laminated and cured at high temperatures to form a dough with high strength and toughness. Finally, through a unique hot-pressing process (without using glue or resin), the honeycomb core material and the fiberglass-reinforced skin are bonded together to form the HolyPan panel.
Send Inquiry
Chat Now
Description
Technical Parameters

High-Strength-Thermoplastic-FRP-PP-Honeycomb-Panel0

Products Description

HolyPan developed and produced by HolyCore is a composite material product, which is a Thermoplastic PP Honeycomb Panel with Glass Fiber Reinforced Skin. HolyPan is composed of a polypropylene (PP) honeycomb core and a fiberglass-reinforced outer skin. Its manufacturing process mainly includes the following steps: First, the PP particles are melted at high temperature and then formed into a honeycomb structure through a special mold. Then, the glass fibers are mixed with special gelling materials, repeatedly laminated and cured at high temperatures to form a dough with high strength and toughness. Finally, through a unique hot-pressing process (without using glue or resin), the honeycomb core material and the fiberglass-reinforced skin are bonded together to form the HolyPan panel.

Glass Fiber Reinforced Panel Introduction

Glass fiber reinforced skin is a high-performance composite material, which is made of glass fiber and resin matrix as the main raw materials. It is processed and manufactured through a series of production processes such as fiber impregnation, lamination, compression molding and curing.

High strength and stiffness

Good heat resistance and low coefficient of linear expansion

Good corrosion resistance

Good electromagnetic shielding performance

Good fire resistance

PP Honeycomb Core Introduction

PP honeycomb core, polypropylene honeycomb core material, is a low-density, honeycomb-shaped material. It is sandwiched between two panels of the honeycomb sandwich structure and mainly bears shear stress, giving the sandwich structure high bending stiffness.

Efficient and lightweight

Thermal stability

Chemical stability

Impact resistance

Flame retardant

Environmental protection

Specification & structure

High-Strength-Thermoplastic-FRP-PP-Honeycomb-Panela

 ITEMSActual Value
Different Test
12345Average Value
Surface Pencil HardnessHBHBHBHBHBHB
Shear stiffness N4.2*10^44.5*10^44.5*10^44.7*10^44.4*10^44.5*10^4

Impact strength mm

1011911910
Moisture content %0.10.20.20.10.20.2
Flat tensile strength MPa>2.2>2.0>2.3>2.2>2.1>2.0

Flat-compression-strength-test

Floor-leather-adhesion -test.jpg

Floor-leather-adhesion -test


Shear-strength-test


Surface-pencil-hardness-test

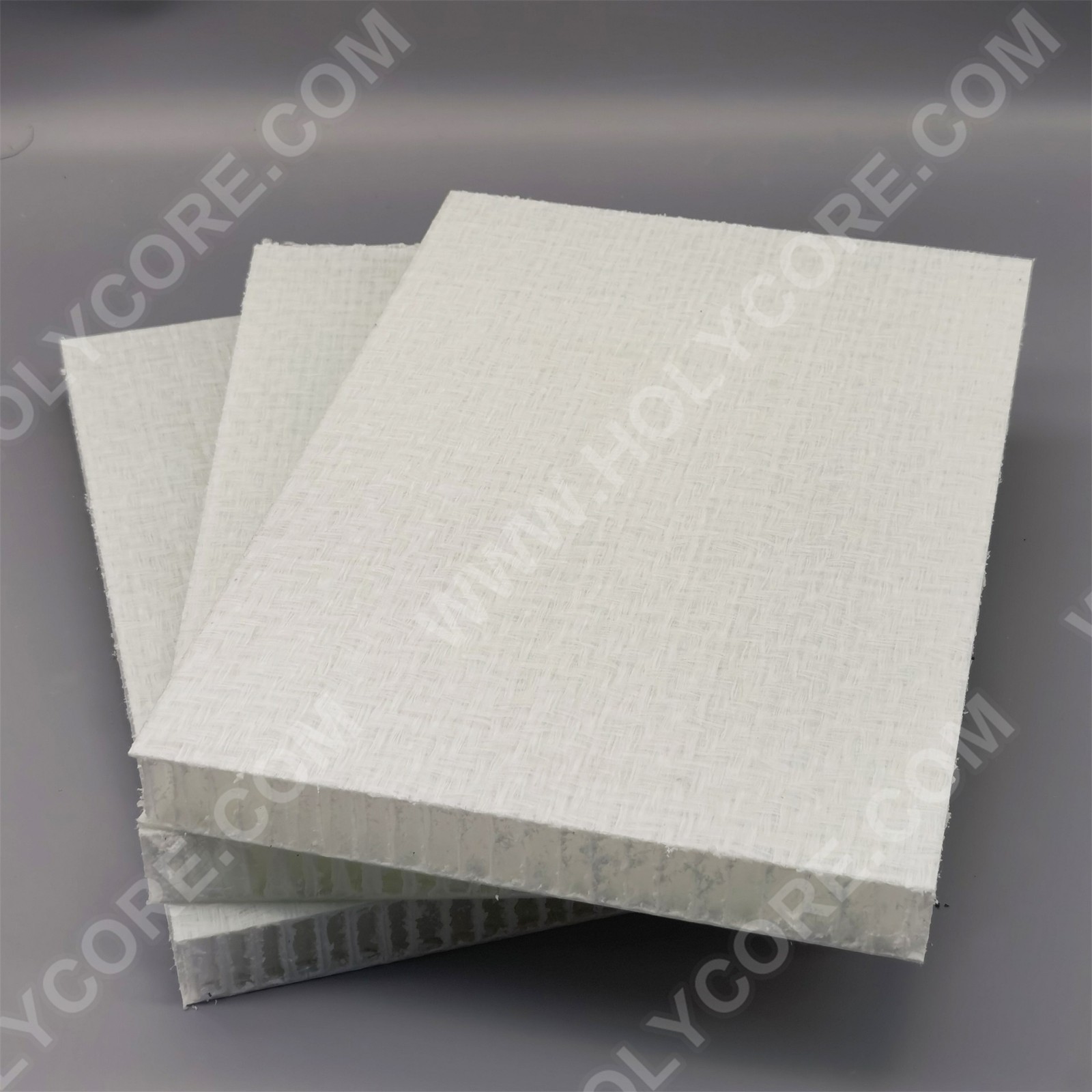

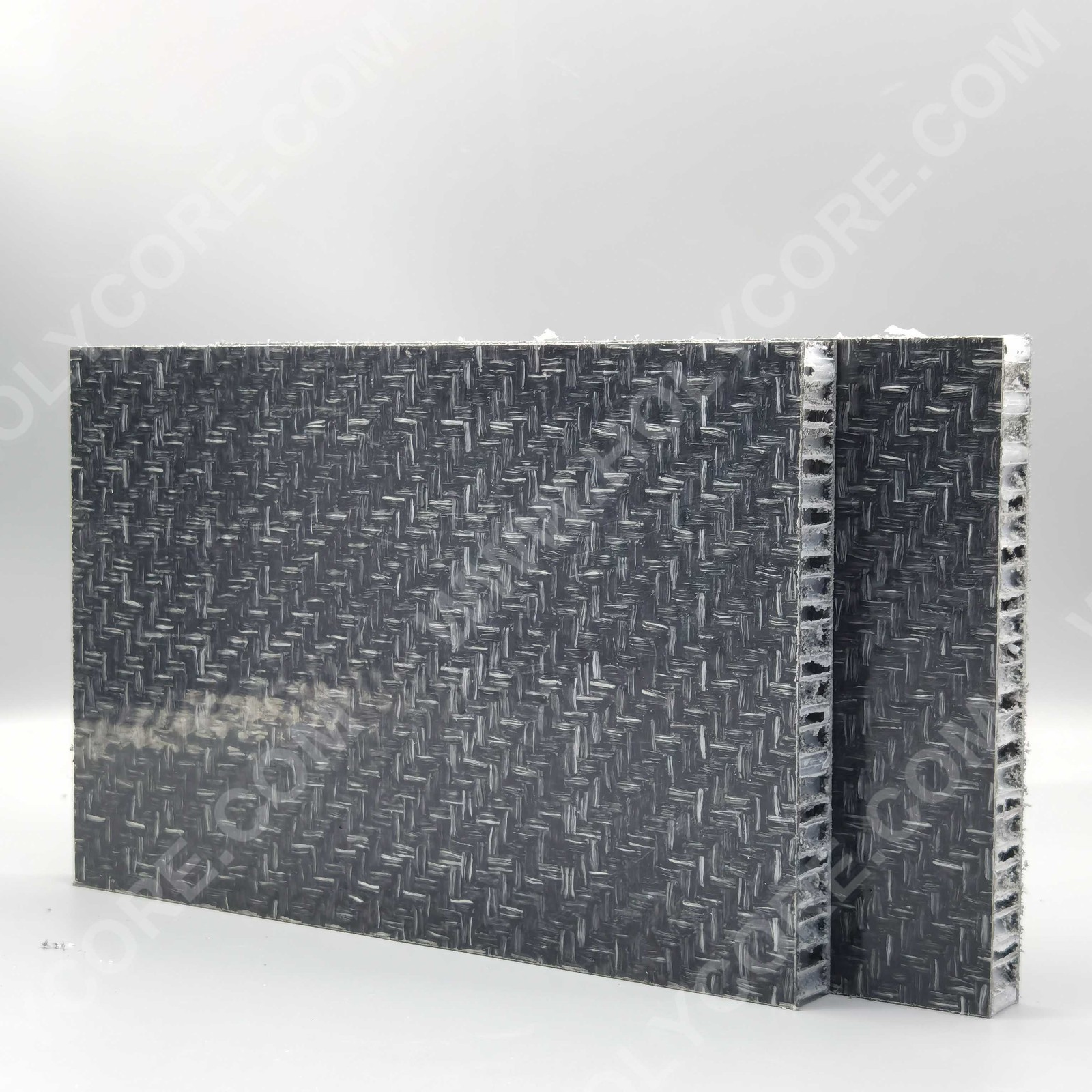

Product True View
Main Advantages



HolyPan has the following advantages:




Light weight: Since the honeycomb core material and dough are both lightweight materials, HolyPan has a lower density, which greatly reduces the weight of the product.

High strength: The addition of glass fiber greatly enhances the strength and hardness of the dough, giving HolyPan a high load-bearing capacity.

Corrosion resistance: Both PP honeycomb core material and glass fiber have good chemical stability and can resist the erosion of various chemical substances.

Good thermal insulation properties: Due to the excellent thermal properties of PP honeycomb core material and glass fiber, HolyPan has very good thermal insulation properties.

Highly customizable: HolyPan’s size, shape and performance can be customized according to actual needs.



HolyPan has a wide range of application fields, mainly suitable for the following aspects:

Automobile manufacturing field:

HolyPan can be applied to car bodies, doors, seats and other parts to improve the strength and stiffness of the car, while reducing the weight of the car, which is beneficial to improving fuel efficiency.

Rail transit field:

HolyPan can be applied to the body and interior decoration of subway, light rail and other vehicles to improve the safety and comfort of the vehicle.

Construction field:

HolyPan can be applied to exterior walls, roofs, floors and other parts of buildings, and has excellent thermal insulation and corrosion resistance.

Electronic product field:

HolyPan can be applied to the casing, internal support structure and other parts of electronic products to improve the strength and stiffness of the product while also having good shock-proof performance.

Packing & Delivery

Wood-veneer-PP-honeycomb-panel-for-furniture-3
