Products Description
Traditional dry freight truck bodies are usually made of metal sheets, making the body overall heavy and difficult to maintain. The lightweight freight truck bodies launched by HolyCore is made of thermoplastic FRP PP honeycomb panels (HolyPan). It is lightweight and high-strength, and is very suitable for truck transportation.

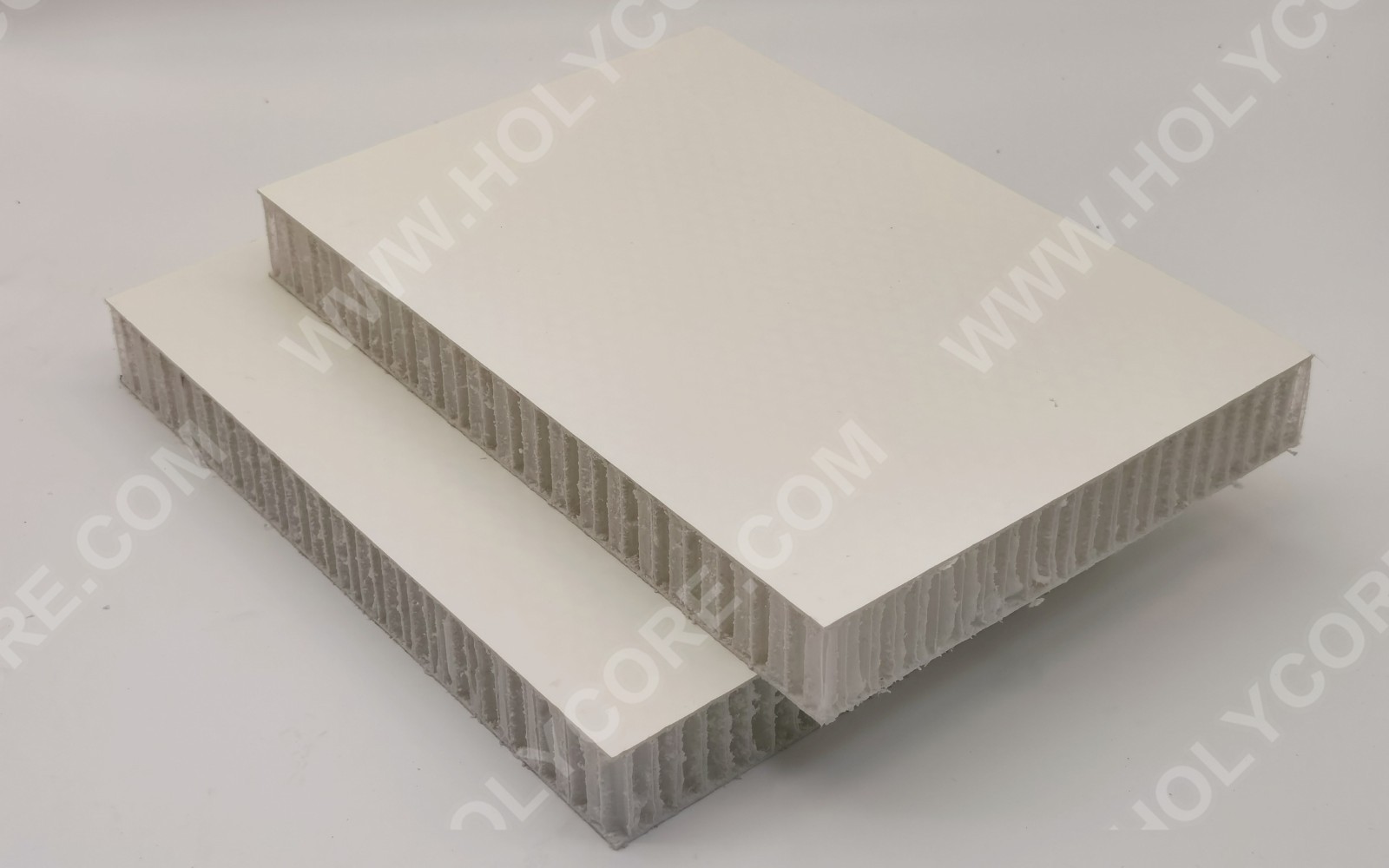

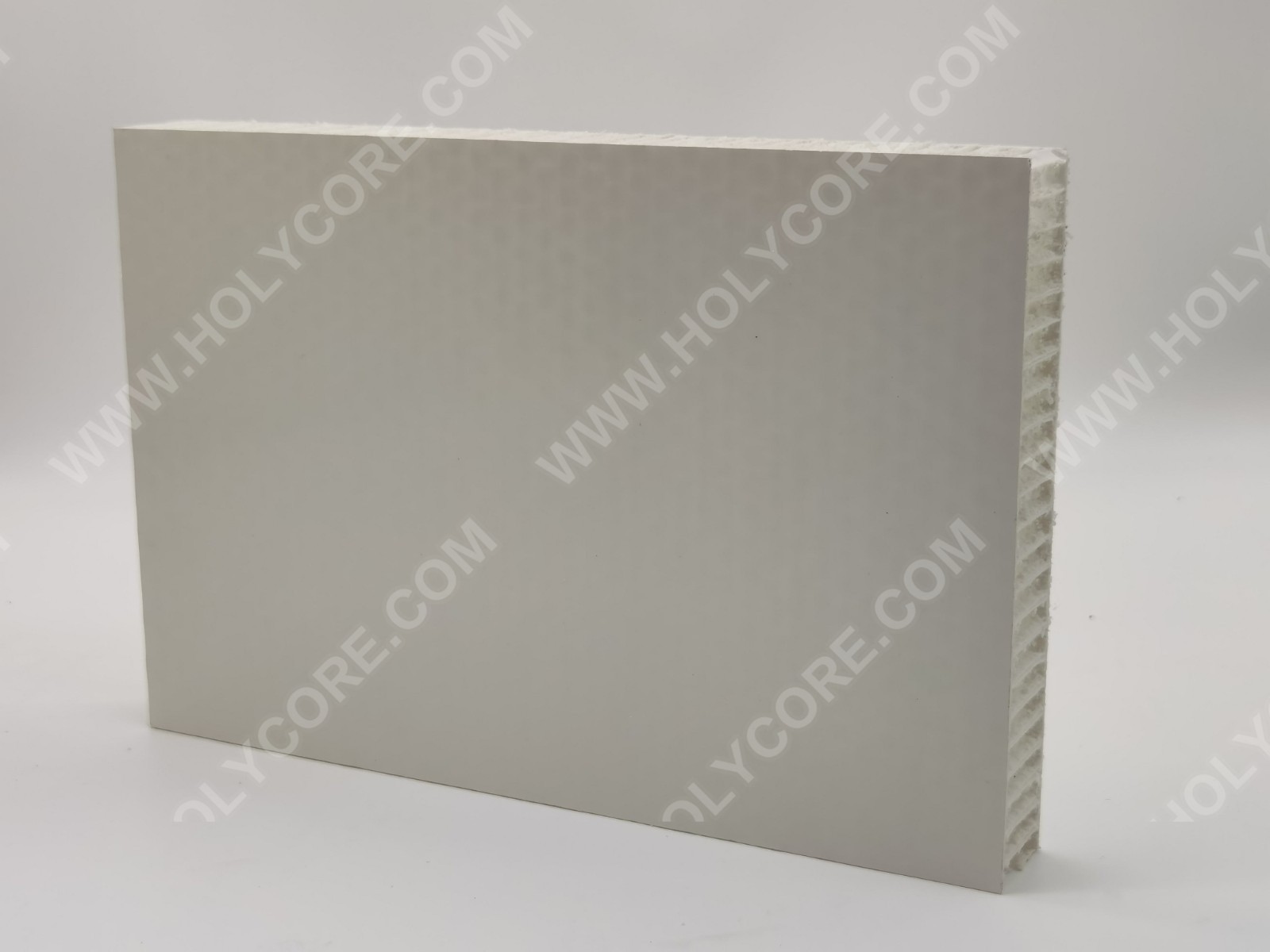

HolyPan——Our FRP PP honeycomb panel is a honeycomb structure material made of polypropylene with reinforced glass fiber skins, which has the advantages of light weight, high strength, corrosion resistance, waterproof, moisture resistance, etc. HolyPan is one of the lightest and strongest composite sandwich panels currently used for dry freight truck bodies.
Structure & Specification
| ITEMS | Actual Value | |||||
| Different Test | 1 | 2 | 3 | 4 | 5 | Average Value |
| Surface Pencil Hardness | HB | HB | HB | HB | HB | HB |
| Shear stiffness N | 4.2*10^4 | 4.5*10^4 | 4.5*10^4 | 4.7*10^4 | 4.4*10^4 | 4.5*10^4 |
Impact strength mm | 10 | 11 | 9 | 11 | 9 | 10 |
| Moisture content % | 0.1 | 0.2 | 0.2 | 0.1 | 0.2 | 0.2 |
| Flat tensile strength MPa | >2.2 | >2.0 | >2.3 | >2.2 | >2.1 | >2.0 |
main Advantages
Light Weight →
Since the honeycomb core material and dough are both lightweight materials, HolyPan has a lower density, which greatly reduces the weight of the product.
High Strength →
The addition of glass fiber greatly enhances the strength and hardness of the dough, giving HolyPan a high load-bearing capacity.
Corrosion resistance: Both PP honeycomb core material and glass fiber have good chemical stability and can resist the erosion of various chemical substances.
Good Thermal Insulation Properties →
Due to the excellent thermal properties of PP honeycomb core material and glass fiber, HolyPan has very good thermal insulation properties.
Highly Customizable →
HolyPan’s size, shape and performance can be customized according to actual needs.
Application True View
Packing & delivery
About Us
HolyCore is a wholly owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF 16949 certification.
At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials, drive the future, we look forward to working with you to build a green world.
