Products Description
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface. The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and eco-friendly. And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panels.
Specification
| STANDARD | MAXIMAL | TOLERANCE | |
| Length（mm） | all cutomized | 16000 | ±5mm |
| Width（mm） | 2160/2300/2500/2700/customized | 2700 | ±5mm |
| Thickness（mm） | 6 - 100 | ||
| Skin Thickness（mm） | 0.7/1.0/1.4/customized | ||
| Core Diameter | 8 | ||
| Density | 8-160 kg/m³ （80 kg for the wall & 120 kg for the floor） | ||
Main Advantages
Lightweight: FRP PP honeycomb panels are light and high-strength, which can reduce the weight by 60% to 80% compared with traditional materials (such as wood and metal), and can withstand high-strength loads.
Corrosion resistance: FRP PP honeycomb panel reacts stably with acid, alkali, salt and other chemical substances, is not easy to be corroded, and has a long service life.
Good mechanical properties: FRP PP honeycomb panels have very high tensile strength and bending, and have good compression, impact and fatigue resistance.
Good process performance: The process of making FRP PP honeycomb panels is simple and easy to operate, and can be automated for production, improving production efficiency.
Strong plasticity: FRP PP honeycomb panels can be customized in different specifications and shapes, and can be processed into various complex parts and structural parts.
Good fire performance: FRP PP honeycomb panel has good fire resistance, it is not easy to burn at high temperature, and can protect the valuable goods and equipment in the box.
Environmental protection: FRP PP honeycomb panel is non-toxic and harmless, does not contain harmful substances, and meets environmental protection requirements.
Sample Display

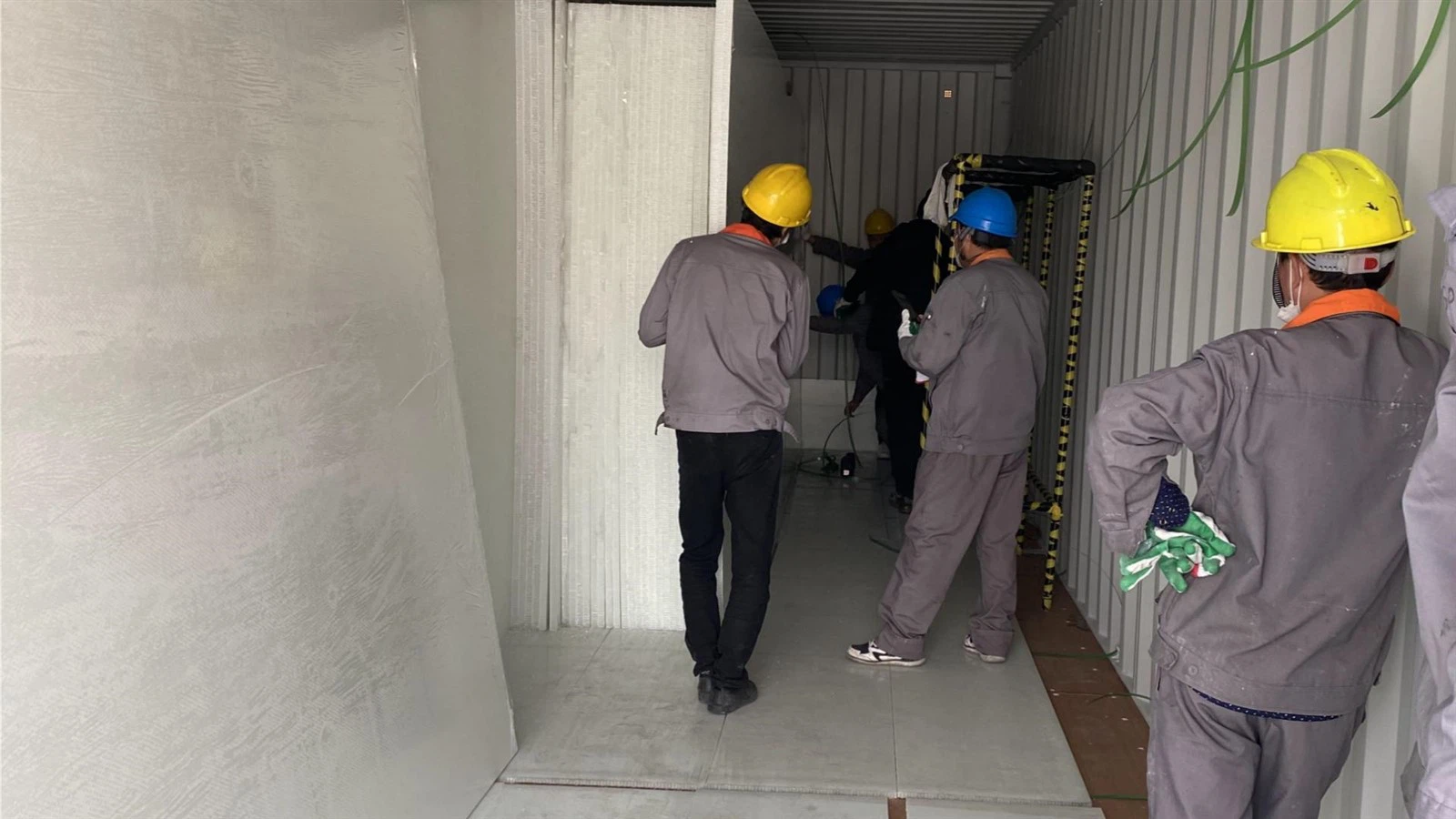

Application True View

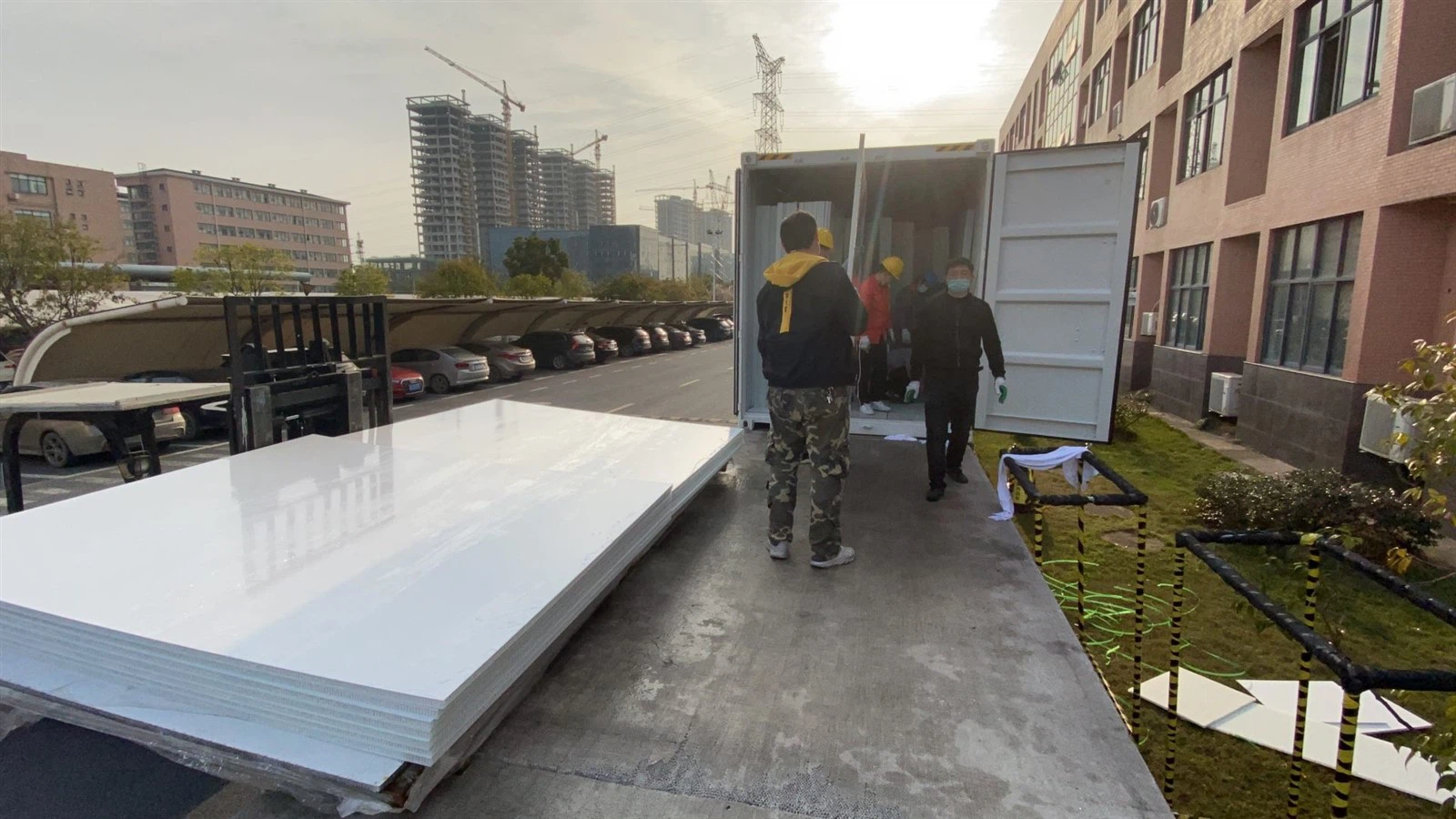

Packing & Delivery
About Us
HolyCore is a wholly owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF 16949 certification.
At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials, drive the future, we look forward to working with you to build a green world.
