Composite Sandwich Honeycomb Panel

Composite Sandwich Honeycomb Panel

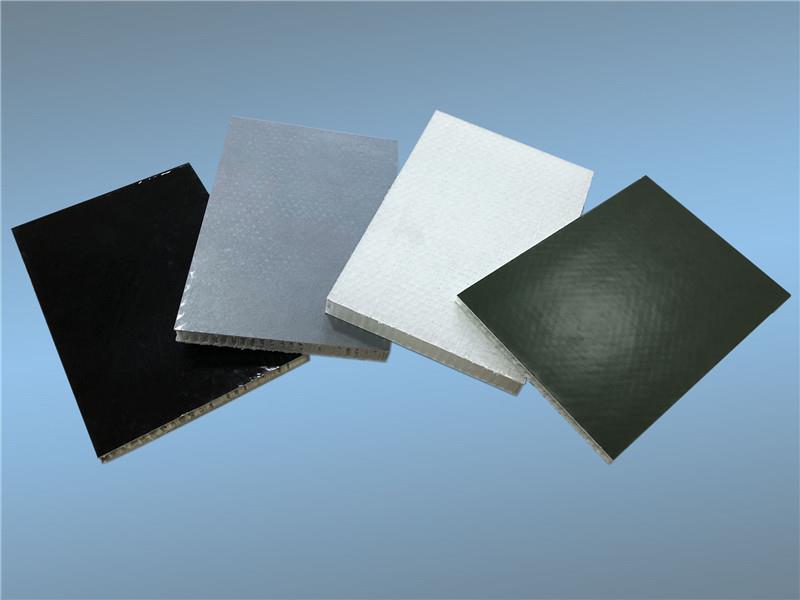

Holypan® is a kind of plastic honeycomb structure sandwich panel.

HolyPan® is a kind of innovative sandwich panel, and has widely applications like van body for logistics and express, mobile house, caravan, package, etc. It has unique bionics structure, the core is PP honeycomb, the skin is fiber glass reinforced pp board. This plastic sandwich panel for portable containers is light weight with excellent mechanical performance at same time. HolyPan® become more and more popular for portable containers all over the world.

Structure:

reinforce woven fabric skin + pp honeycomb core + reinforce woven fabric skin.

Skin:

standard skin: 0.7mm, special skin: 1.0mm, 1.4mm.

Core density:

80kgs/m3(standard core), 100kgs/m3, 120kgs/m3.

Core thickness:

very flexible, from 10mm to 70mm.

Surface:

Painted white one side(standard paint color).

Unpainted both sides

Black color

Some special color paints are available, such as green, orange, red, blue.

Specification:

Max length for export: 11900mm.

Max width for export: 2500mm.

Thickness range: from 12mm to 70mm.

Features:

lightweight

high strength

waterproof

moisture proof

anti-UV

saving energy

eco-friendly

easy to assemble

SERVICE:

We offer technical support

We offer solution suggestions

We offer free samples

We offer customization

We have strict quality control system

We have professional sales

PACKING&DELIVERY

Our panels will be carefully packed for long sea freight:

1.Film at the bottom to protect the product from scratching

2.Wooden Pallets

3.Built-in fixed

4.By sea or by air in special case

5:Port:Shanghai Port, Ningbo Port
