Brief Introduction
HolyPan——Our FRP PP honeycomb panel is a honeycomb structure material made of polypropylene with reinforced glass fiber skins, which has the advantages of light weight, high strength, corrosion resistance, waterproof, moisture resistance, etc. HolyPan is one of the lightest and strongest composite sandwich panels currently used for dry freight truck bodies. Meanwhile, HolyCore Composites, as an experienced panel manufacturer, has rich R&D experience. We can provide you with a full range of high-quality services from panel production, finished product assembly, packaging and shipping, and after-sales tracking.
Panel Information

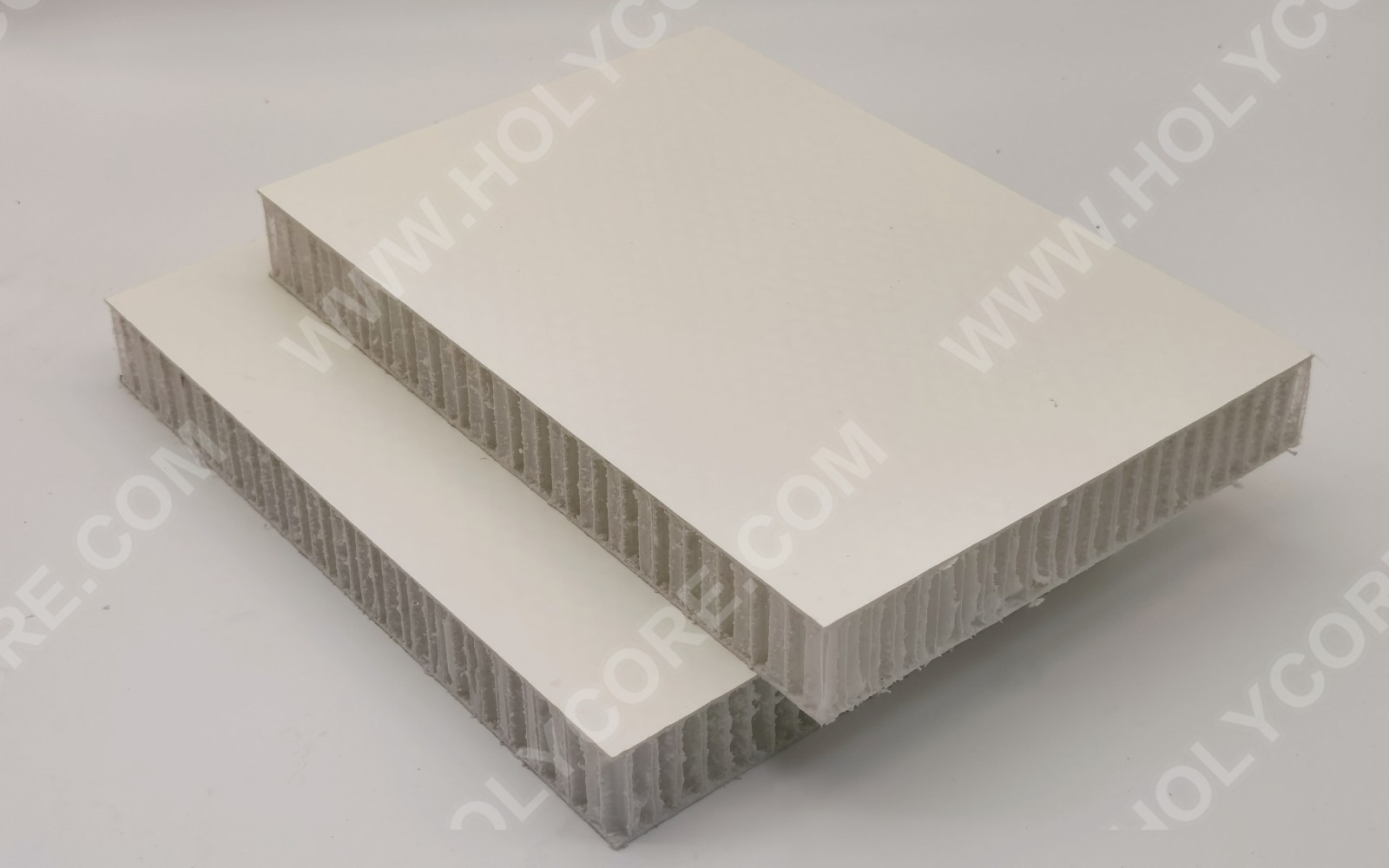

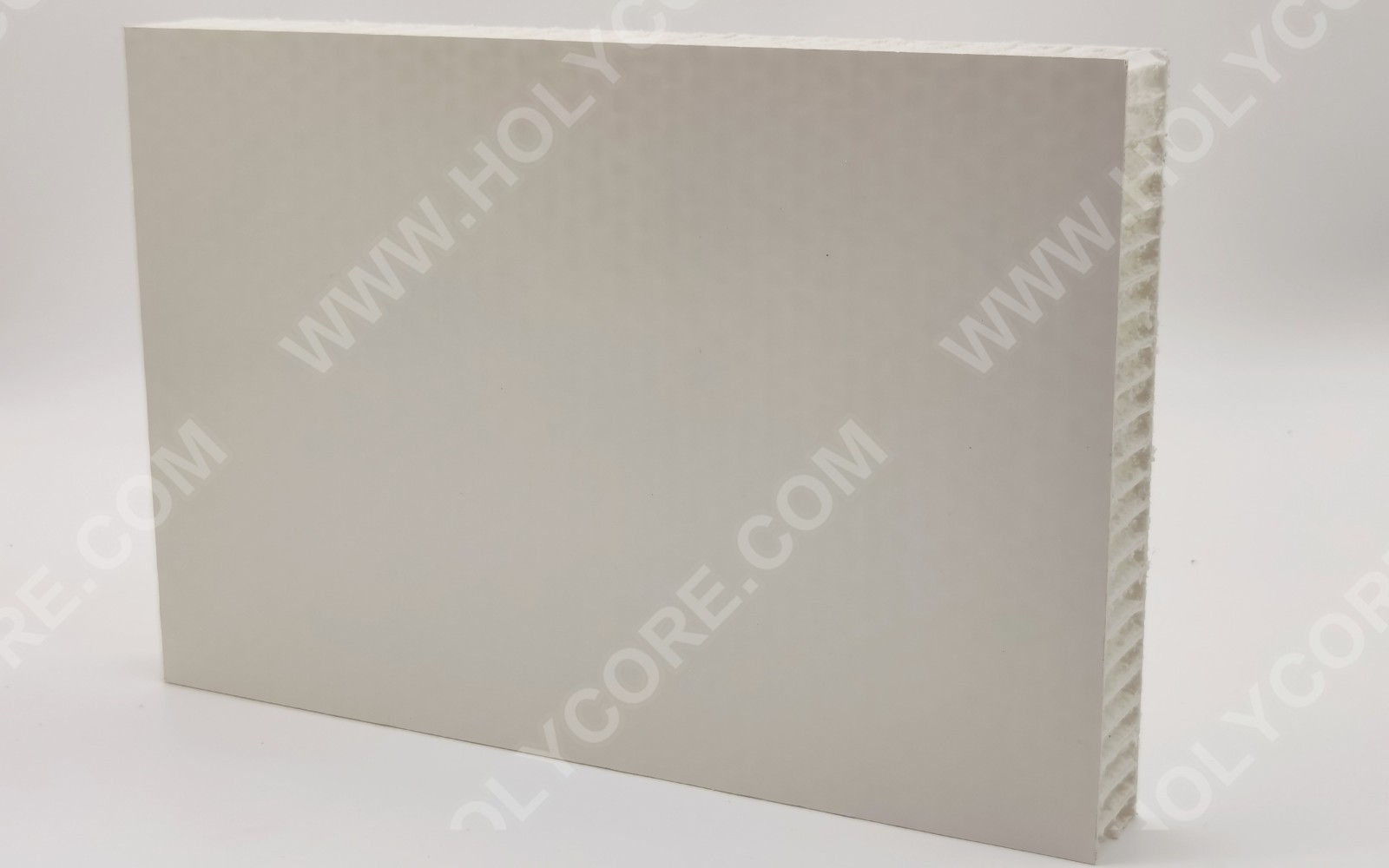

HolyPan is one of the lightest and strongest composite sandwich panels produced for industries. This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface.
The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and eco friendly. And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panel systems
Default Option
Smooth Skin Option
Main Advantages
Light Weight and Hight Strength
Solid Smooth Surface
Durable
Easy to Assemble and Fix
Highly Customized
Eco-friendly
Panel Specification
| Testing Results of HolyCore FRP PP Honeycomb Panel 12mm | |||
| Item | Data | Item | Data |
| Bending Stiffness | 9.1*107 N·MM2 | Shear Strength | 1.4 Mpa |
| Flat Compressive Strength | 3.6 Mpa | Flat Tensile Strength | 1.5 Mpa |
| Flattening Modulus | 56 Mpa | Weight | 4.7 KG/M3 |
| Static Bending Stiffness | 63 Mpa | Skin Weight | 1.45 KG/M3 |
| Static Flexural Modulus | 4400 Mpa | Core Density | 120 KG/M3 |
Product Line
Applications Pics
About Us

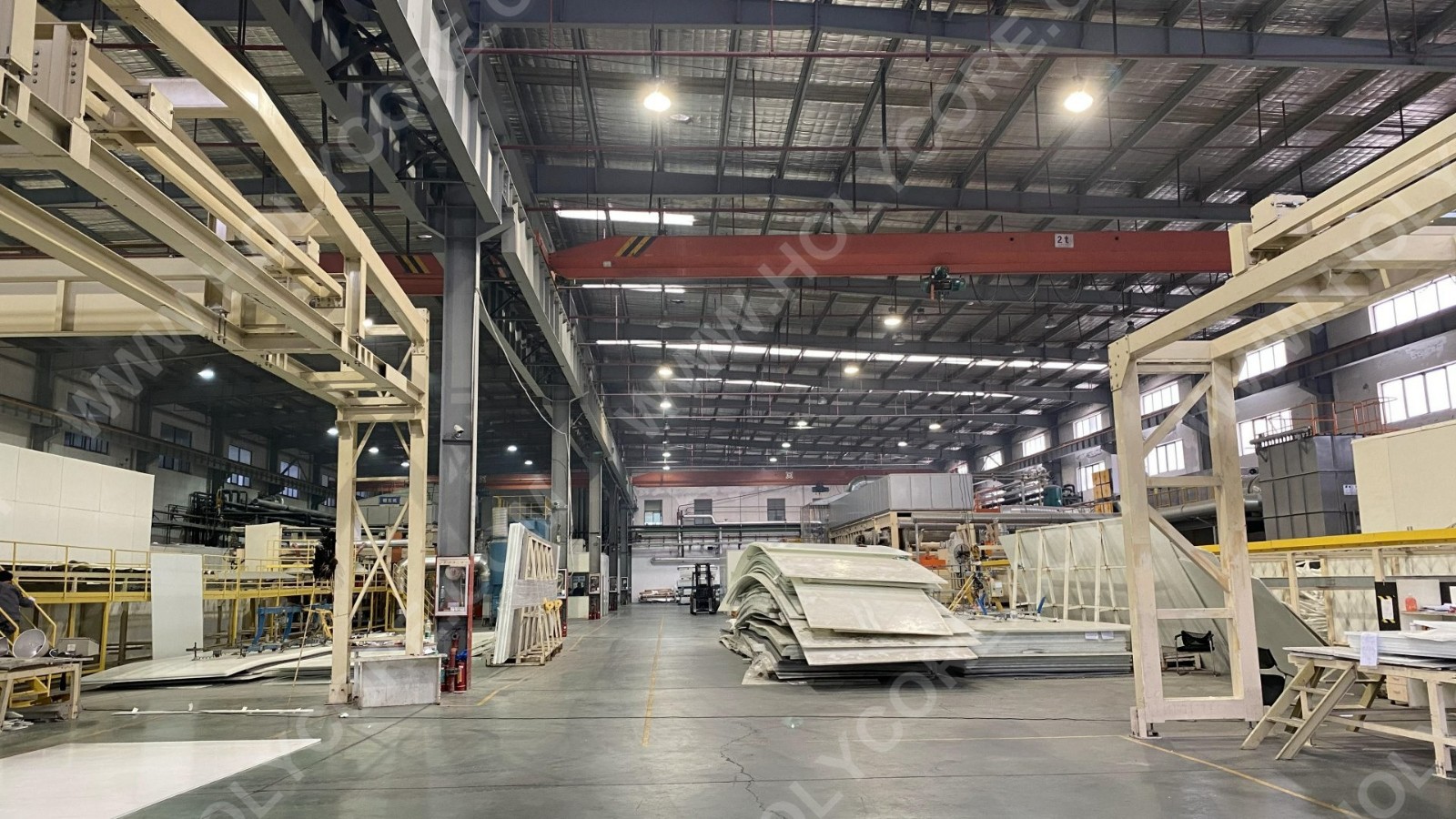

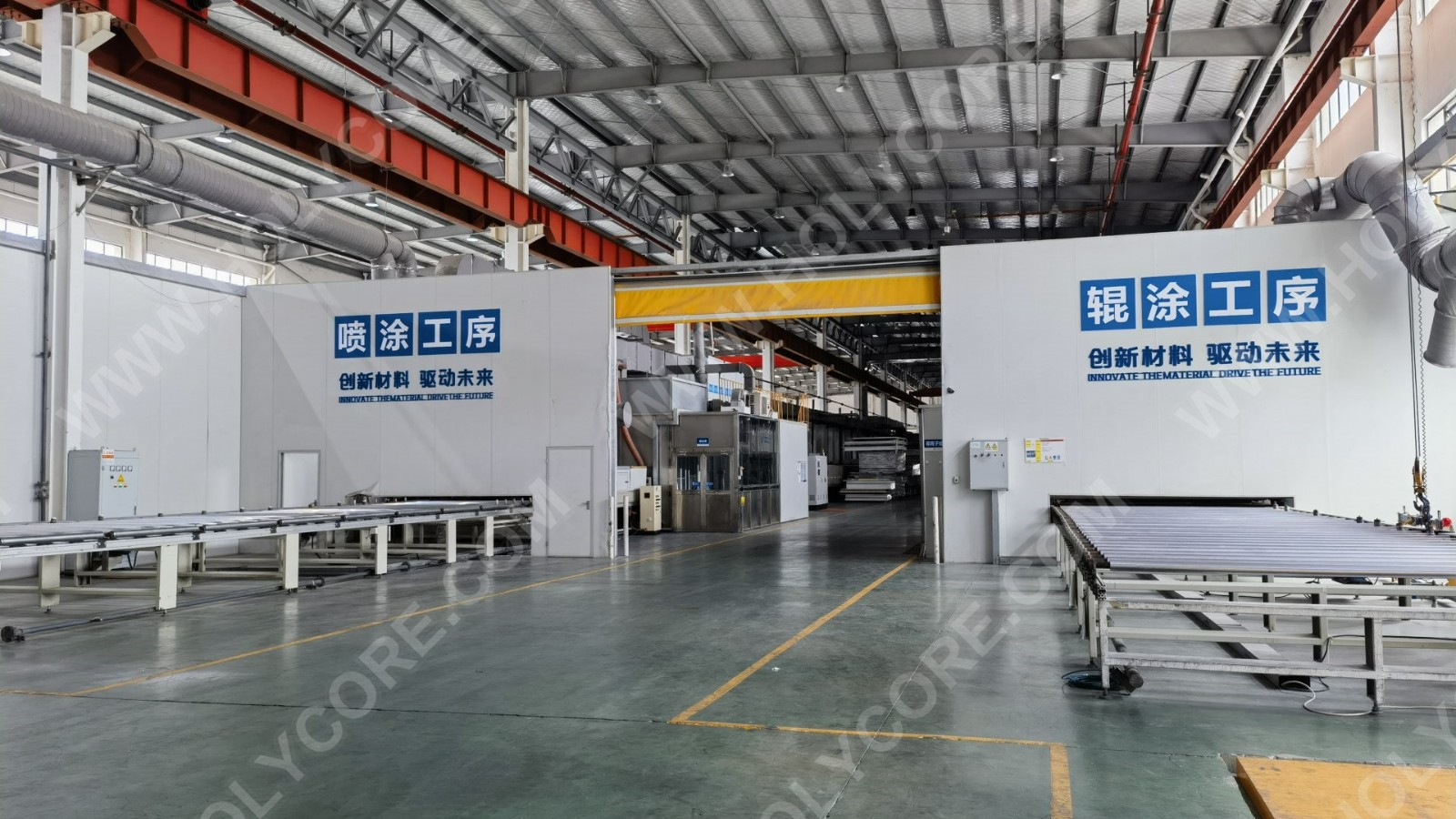

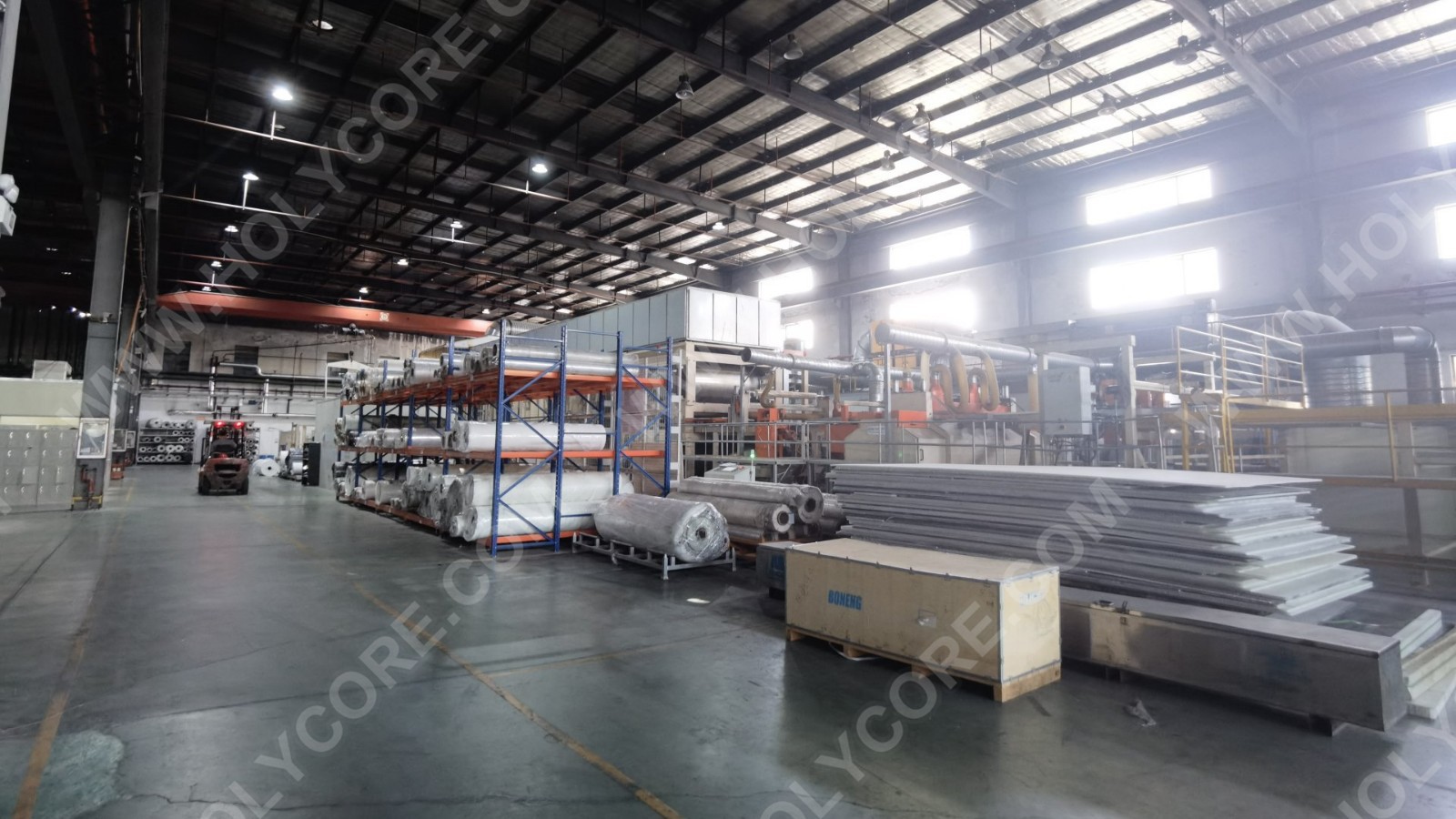

HolyCore is a wholly owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF 16949 certification.
At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials, drive the future, we look forward to working with you to build a green world.
